Products

Advantages
Different packet or kaaps can be kept( minimum 7 or 8).
Very low consumption of acid only 75 ml either its is 1 carat or 2000 carat.
Facility of keeping big carat size diamond(eg. 1carat,2carat etc..) so not problem of breaking point of diamond.
Low power cost facility of Automatic cut of system.
No fumes is coming out during process.
Facility of keeping small size diamond in large quantity
No Breaking of culet's chip and stone burn for big size pointers diamonds.
Working Hours For Operating Boiling System
FOR NORMAL BOILING = 5 TO 6 HOURS.
FOR HARD BOILING = 12 TO 18 HOURS.
Carat Capacity Of Deep Boil Equipment
500 carat
500 carat
2000 carat
2000 carat
5000 carat and 10000 carat
5000 carat
10000 carat
500 carat

500 carat

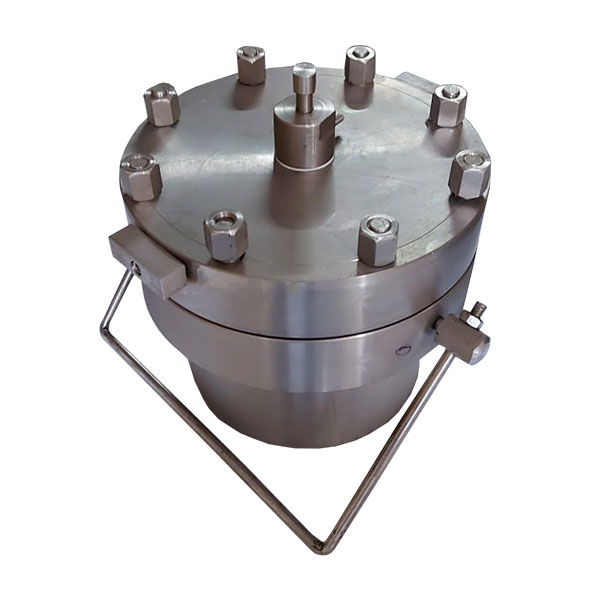

Pot Size Of Deep Boiling Equipment
Metal Pot Size For 2000 Carat
Outer Size
160 mm dia x 215mm
175 mm dia x 215 mm
Inner Size
68 mm dia x 130 mm height
Lid thickness
60 mm Thickness
With heavy stud and Nut bolt with Release system.
Metal Pot Size For 5000 Carat
Outer Size
200 mm dia x 215 mm
Inner Size
68 mm dia x 130 mm height
Lid thickness
60 mm Thickness
With heavy stud and Nut bolt with Release system.
Mini Acid Scrubber And Acid Neutralization Plant
We are manufacturer of mini scrubber system,Acid scrubber plant,fumes scrubbing system,Acid fumes exhaust scrubber plant for diamond boiling industry
Operation Of Plant
The exhaust gases of combustion may contain substances considered harmful to the environment, and the scrubber may remove or neutralize those substances. A wet scrubber is used to clean air, flue gas or other gases of various pollutants and dust particles. Wet scrubbing works via the contact of target compounds or particulate matter with the scrubbing solution.
Process exhaust gas can also contain toxic and/or corrosive gases like hydrogen chloride HCl or ammonia NH3,sulphuric,nitric etc... These can be removed very well by a wet scrubber
Removal efficiency of pollutants is improved by increasing residence time in the scrubber or by the increase of surface area of the scrubber solution by the use of a spray nozzle, packed towers or an aspirator. Wet scrubbers may increase the proportion of water in the gas, resulting in a visible stack plume, if the gas is sent to a stack.
How It Works
Cross Flow Scrubbers
In many cases,and specially when a chemical reaction in the liquid phase is involved in the scrubbing process,cross flowscrubbers are used.These devices operate in a similar manner to the traditional countercurrent devices with the exception that the gas flows horizontally in the packed bar.The liquid chemical is still fed at the top and flows downward through the packing,but the contact between the liquid solution and the gas takes place in across-flow arrangement.Cross flow scrubbers can be very effective espically when using a caustic solution to scrub an acid gas.They exhibit lower pressure drops and slightly higher capacities and have a horizontal profile that can be desirable when space restrictions exist.in general though,countercurrent scrubbers are capable of higher removal efficiences and are able to minimize the amount of scrubbing liquid needed.

LABH TECHNOLOGY ENTERPRISE can asist you in the selection of the most ecnomical flow arrangement for your scrubber given the constraints of your site and required perfomance
Mini Acid Scrubber Plant Is New Invention For Diamond Industry
Mini Acid Scrubber And Acid Neutralization Plant
Main Points To Discuss
We have recently compare the every boiling machine included glass vessel, glass tubes , microwave oven system ( israel) ,and many boiling system etc.... including all, our boiling system result is good compare to all boiling system.It will increase diamond valuation.You can ask our customer as given below names.
